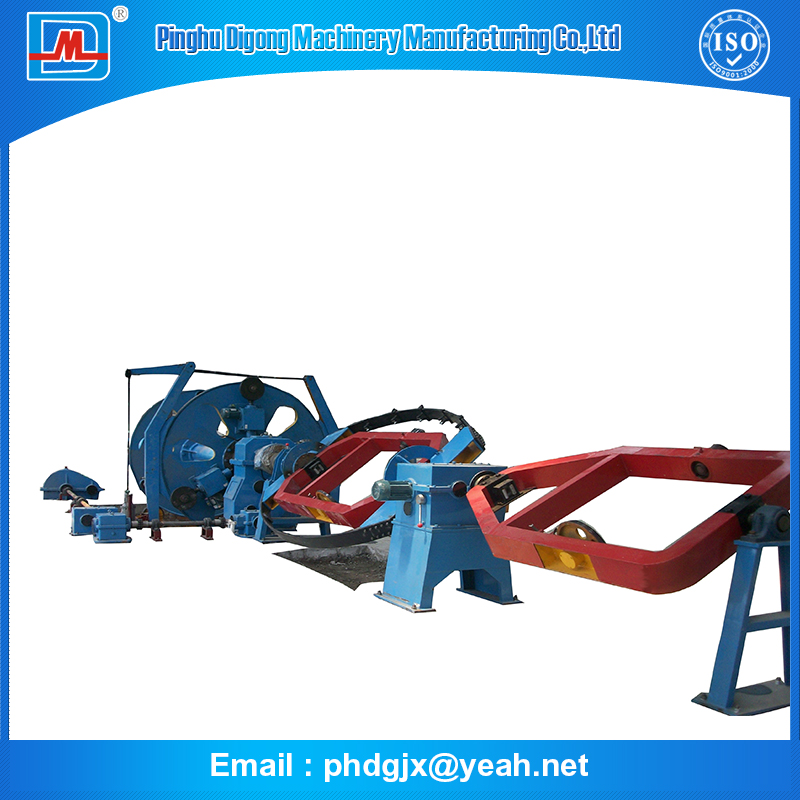

CLY1000-1250 series multi-function high speed planetary cage type laying-up machine

Pinghu Digong







                                         CLY1000-1250 Series

                         Planetary cage type laying-up machine



Application Mainly used for cabling 3-core,4-core,and 5-core large cross-section power cables,back-twisting stranding of round cables, and non-back-twisting stranding of fan cables.

Component

Number	Designation	Quantity
1	rear cradle or pay-off stand	1set
2	stranding cage	1set
3	die holder	1set
4	common taping head	1set
5	steel taping head	1set
6	meter counter	1set
7	haul-off device	1set
8	take-up and traversing stand	1set
9	electronic control system and safety protection device	1set





















Technology Data

Designation	Unit	CLY1000/1+1+3 CLY1000/1+4        CLY1000/1+6	CLY1250/1+1+3 CLY1250/1+4        CLY1250/1+6
Section of single root cable core	mm	10-185	10-240
Maximum diameter of laying-up	mm	φ75	φ80
Speed of stranding cage	rpm	14.11-33.62	14.11-33.62
Pitch of laying-up	mm	210-2235	293-3121
Taping speed	rpm	188-419	188-419
Taping pitch	mm	17-168	24-234
Armoring speed	rpm	161-369	161-369
Armoring pitch	mm	19-196	27-274
Traction wheel	mm	φ2000 single wheel	φ2000 single wheel
Main motor power	kw	30	30
Take-up reel stand	mm	PN1000-PN2000	PN1250-PN2500


Type of back-twisting :
