haul-off device

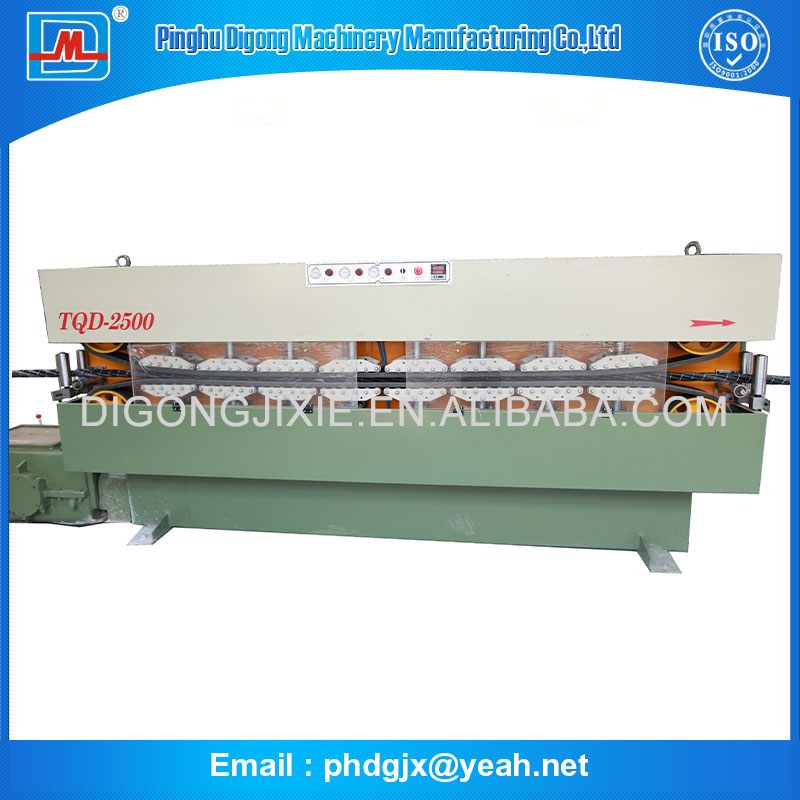

cable haul-off device - caterpillar type cable traction machine
TQD-500kg、800kg、1250kg、1600kg、2000kg、2500kg
Caterpillar Type Haul-off Machine
一、Application：
Mainly used for the traction of all kinds of cables and are regarded as the best traction equipment for the production line of extruders, the armoring machines and screening machines.
二、Model：
500Kg caterpillar haul-off device，800Kg caterpillar haul-off device，1250Kg caterpillar haul-off device，1600Kg caterpillar haul-off device，2000Kg caterpillar haul-off device， 2500Kg caterpillar haul-off device...
三、Technology data：
| model | TQD-800 | TQD-1250 | TQD-1600 | TQD-2000 | TQD-2500 |
| haul-off force（kg) | 800 | 1250 | 1600 | 2000 | 2500 |
| cable outer diameter（mm) | φ3-80 | φ5-130 | φ5-150 | φ15-150 | φ15-150 |
| contact length of track （mm) | 1300 | 1575 | 1900 | 2392 | 2392 |
| track width（mm) | 100 | 120 | 140 | 140 | 160 |
| cylinder logarithm | 4 | 5 | 6 | 7 | 8 |
| maximum traction speed（m/min） | 100 | 100 | 100 | 100 | 63 |
| motor power（kw) | 7.5 | 7.5 | 11 | 11 | 15 |
| clamping cylinder | QGA80*72 | QGA100*100 | QGA100*100 | QGA125*100 | QGA125*100 |
| outside size |
2300*970* 1500 |
2700*1000* 1550 |
3100*1000* 1550 |
3400*1000* 1550 |
3700*1000* 1550 |
四、Main pictures：
